Porcine Cytokine Array Q1

Porcine Cytokine Array Q1

Item no.	QAP-CYT-1-2
Manufacturer	Raybiotech
Amount	22 Sample Kit
Quantity options	8 Sample Kit 22 Sample Kit 50 Sample Kit
Category	Oncology Neuroscience Neuroinflammation Metabolism Diabetes Glucose Homeostasis Cholesterol & Lipid Metabolism By Cell Type Carcinoma Hematology Leukemia Cell Biology Cell Movement Cell Adhesion Obesity Cell Culture Cytokines Cell Status Necrosis Mesothelioma Arrays By Organ Colorectal Cancer Antibody Arrays
Type	Array
Specific against	Pig
Host	Hamster - Armenian
Citations	1. Beltran-Beck B., de la Fuente J., Garrido J., Aranaz A., Sevilla I., et al. Oral Vaccination with Heat Inactivated Mycobacterium bovis Activates the Complement System to Protect against Tuberculosis. PLOS One, 2014 May 19, DOI: 10.1371/journal.pone.0098048
ECLASS 10.1	32161000
ECLASS 11.0	32161000
UNSPSC	41116126
Similar products	IFN-gamma, IL-10, IL-1 beta, IL-6, IL-4, IL-12, IL-8, IL-6, GM-CSF, TGF beta 1, TNF alpha
Available
Number of Targets Detected	10
Species Detected	Porcine (pig)
Compatible Sample Types	Cell Culture Supernatants Cell Lysates Other Body Fluids Plasma Serum Tissue Lysates
Design Principle	Sandwich-based
Method of Detection	Fluorescence Laser Scanner
Quantitative/Semi-Quantitative	Quantitative
Solid Support	Glass Slide
Gene Symbols	CSF2CXCL8IFNGIL10IL12AIL1BIL4IL6TGFB1TNF
Application Information	Multiplexed Protein Detection Biomarker Screening Identifying Key Factors Confirming Biological Process Biomarker Validation Validation of Antibody Array Results Quantitative Protein Detection Establishing Normal Range

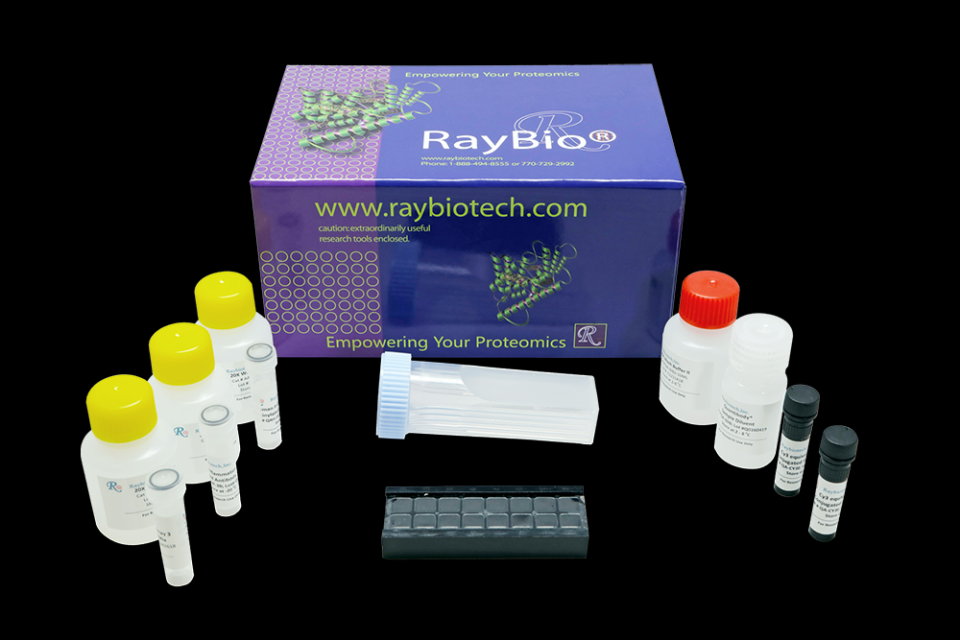

Kit Components	Porcine Cytokine Array Q1 Slide(s) Blocking Buffer Wash Buffer 1 Wash Buffer 2 Lyophilized Standard Mix Biotinylated Detection Antibody Cocktail Streptavidin- Conjugated Fluor Slide Washer/ Dryer Adhesive Plastic Strips Manual
Other Materials Required	Distilled or deionized water Small plastic boxes or containers Pipettors, pipette tips and other common lab consumables Orbital shaker or oscillating rocker Aluminum foil Gene microarray scanner or similar laser fluorescence scanner
Protocol Outline	Dry the glass slide Prepare Standards Block array surface Incubate with Samples and Standards Incubate with Biotinylated Detection Antibody Cocktail Incubate with Streptavidin- Conjugated Fluor Disassemble the glass slide Scan with a gene microarray laser scanner Perform densitometry and analysis
Storage/Stability	For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array slide(s), standard mix, detection antibody cocktail, and Cy3-Conjugated Streptavidin at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
Pathway	JAK/STAT SignalingMAPK SignalingNFkB Signaling

Note: The presented information and documents (Manual, Product Datasheet, Safety Datasheet and Certificate of Analysis) correspond to our latest update and should serve for orientational purpose only. We do not guarantee the topicality. We would kindly ask you to make a request for specific requirements, if necessary.

All products are intended for research use only (RUO). Not for human, veterinary or therapeutic use.
