Porcine Cytokine Array GS50

Multiplexed Protein Detection
Detection of Relative Protein Expression
Detecting Patterns of Cytokine Expression
Biomarker Screening
Identifying Key Factors
Confirming Biological Process

Cell Culture Supernatants
Cell Lysates
Plasma
Serum
Tissue Lysates

Fluorescence Laser Scanner

Glass Slide

Antibody Array Slide/s
Blocking Buffer
Wash Buffer 1
Wash Buffer 2
Biotinylated Detection Antibody Cocktail
Streptavidin-
Conjugated Fluor30 ml Centrifuge Tube
Adhesive Plastic Strips
Manual

Dry the glass slide
Prepare Standards
Block array surface
Incubate with samples
Incubate with Biotinylated Detection Antibody Cocktail
Incubate with Streptavidin-
Conjugated Fluor
Disassemble the glass slide
Scan with a gene microarray laser scanner
Perform densitometry and analysis

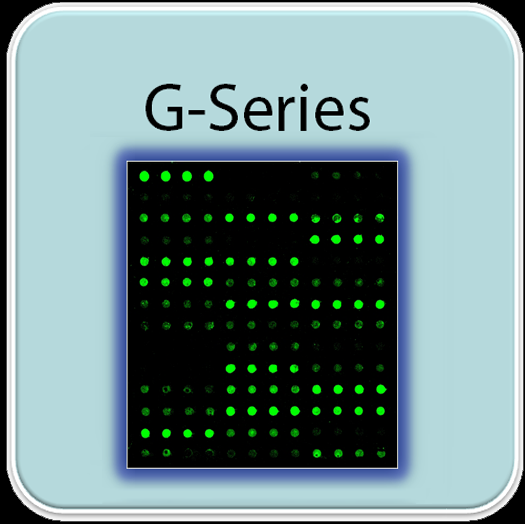

RayBio® G-Series Arrays are glass slide-based antibody arrays which allow researchers to conduct rapid, accurate expression profiling of hundreds of cytokines, chemokines, growth factors, proteases, soluble receptors and other proteins from any biological fluid. Like a traditional sandwich-based ELISA, this array uses a matched pair of cytokine-specific antibodies for detection. Like the Quantibody® Multiplex ELISA Arrays, G-Series utilizes a highly sensitive and stable fluorescent readout which can be detected by most laser fluorescent scanner systems (see below for more info). After capturing the spot densities with a laser scanner, normalization of the raw data can be easily calculated by the researcher, or by a quick copy-paste into our excel-based Analysis Tool software.
This array as well as all catalog numbers beginning with 'GS' differ from the classic G-Series Arrays in a few important ways. First, each capture antibody is printed in quadruplicate instead of duplicate, delivering higher precision. Secondly, this array features the same antibody panels used in our Quantibody Arrays, allowing a seamless transition to our quantitative multiplex assay platform. Lastly, all 16 wells are spotted as sub-arrays, delivering easy handling of 16 samples simultaneously while consuming low sample volumes (10 - 100 µl per array).
