ArtNr |
QAR-CYT-3-4 |
Hersteller |
Raybiotech
|
Menge |
50 Sample Kit |
Quantity options |
8 Sample Kit
22 Sample Kit
50 Sample Kit
|
Kategorie |
|
Typ |
Array |
Specific against |
Rat |
Citations |
Levine YA, Koopman FA, Faltys M, Caravaca A, Bendele A, et al. (2014) Neurostimulation of the Cholinergic Anti-Inflammatory Pathway Ameliorates Disease in Rat Collagen-Induced Arthritis. PLoS ONE 9(8): e104530. doi:10.1371/journal.pone.0104530 |
ECLASS 10.1 |
32161000 |
ECLASS 11.0 |
32161000 |
UNSPSC |
41116126 |
Similar products |
IFN-gamma, IL-10, IL-1 alpha, IL-1 beta, IL-6, Leptin, TIMP-1, IL-13, IL-4, IL-6, Fractalkine, CNTF, VEGF-A, IL-2, RAGE, GM-CSF, MCP-1, ICAM-1, LIX, PDGF-AA, TNF alpha, L-Selectin, B7-2, Prolactin R, CINC-2, TCK-1, CINC-3, b-NGF, CINC-1 |
Lieferbar |
|
Number of Targets Detected |
27 |
Species Detected |
Rat |
Compatible Sample Types |
Cell Culture Supernatants Cell Lysates Other Body Fluids Plasma Serum Tissue Lysates |
Design Principle |
Sandwich-based |
Method of Detection |
Fluorescence Laser Scanner |
Quantitative/Semi-Quantitative |
Quantitative |
Solid Support |
Glass Slide |
Gene Symbols |

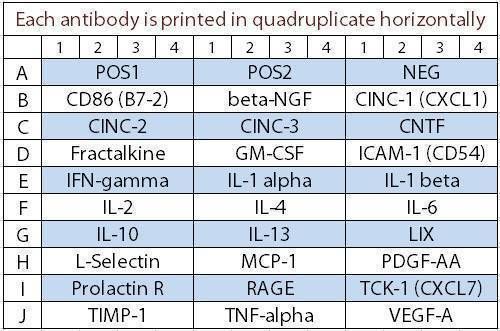

AGER | CCL2 | CD86 | CNTF | CSF2 | CX3CL1 | CXCL1 | CXCL2 | CXCL3 | CXCL5| ICAM1 | IFNG | IL10 | IL13 | IL1A | IL1B | IL2 | IL4 | IL6 | LEP | NGF | PDGFA | PPBP | PRLR | SELL | TIMP1 | TNF | VEGFA |
Application Information |
Multiplexed Protein Detection Biomarker Screening Identifying Key Factors Confirming Biological Process Biomarker Validation Validation of Antibody Array Results Quantitative Protein Detection Establishing Normal Range |

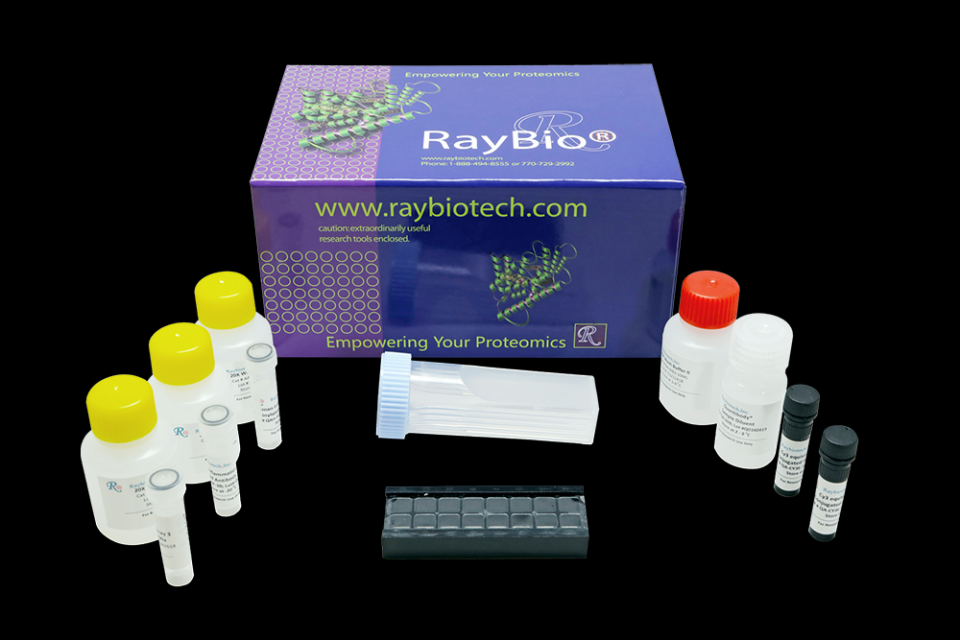

Kit Components |
Rat Cytokine Array Q3 Slide(s) Blocking Buffer Wash Buffer 1 Wash Buffer 2 Lyophilized Standard Mix Biotinylated Detection Antibody Cocktail Streptavidin- Conjugated Fluor Slide Washer/ Dryer Adhesive Plastic Strips Manual |
Other Materials Required |
Distilled or deionized water Small plastic boxes or containers Pipettors, pipette tips and other common lab consumables Orbital shaker or oscillating rocker Aluminum foil Gene microarray scanner or similar laser fluorescence scanner |
Protocol Outline |
Dry the glass slide Prepare Standards Block array surface Incubate with Samples and Standards Incubate with Biotinylated Detection Antibody Cocktail Incubate with Streptavidin- Conjugated Fluor Disassemble the glass slide Scan with a gene microarray laser scanner Perform densitometry and analysis |
Product Features |
More cost-effective than traditional ELISA High specificity and system reproducibility Suitable for diverse sample types Low sample volume requirement: 50 µL or less Get results same day (6-hour processing time) Well-suited for high throughput assays Q Analyzer software provides one-step computation |
Hinweis: Die dargestellten Informationen und Dokumente (Bedienungsanleitung, Produktdatenblatt, Sicherheitsdatenblatt und Analysezertifikat) entsprechen unserem letzten Update und sollten lediglich der Orientierung dienen. Wir übernehmen keine Garantie für die Aktualität. Für spezifische Anforderungen bitten wir Sie, uns eine Anfrage zu stellen.
Alle Produkte sind nur für Forschungszwecke bestimmt. Nicht für den menschlichen, tierärztlichen oder therapeutischen Gebrauch.
